Single Sided
Barrier on One Side of post
Double Sided
Barrier on both sides of post
Single Sided Double Row
Two rows of barrier on one side of post
Double Sided Double Row
Two rows of barrier on both sides of post

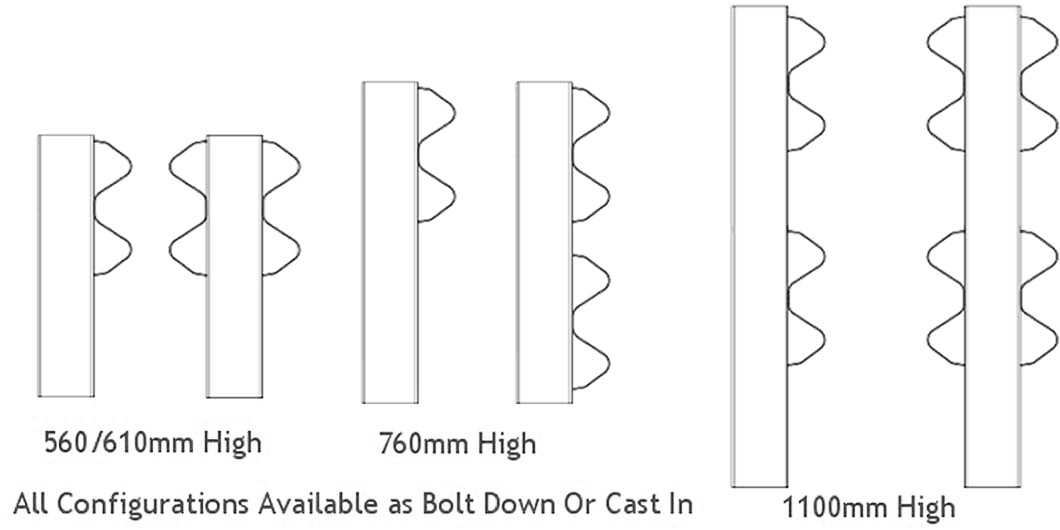

Typical barrier configurations
These are a few of the ways that Safety Barriers can be mounted on to the vertical posts. These layouts will provide a solution to the needs of most situations. Should you, however, have a problem that cannot be overcome by using a standard layout, then Compass Protection Manufacturing Ltd can manufacture individually designed posts to satisfy your conditions.
Normally on a highway, when a vehicle crashes into the crash barrier in the central reserve, the impact tends to be at a fairly sharp 20 degree angle and at high speeds. Also, to offer some protection to the driver and passengers, a certain amount of give or deflection is desirable in the way that the safety barrier reacts to the vehicle, to soften the blow of the impact.
Normally on a highway, when a vehicle crashes into the crash barrier in the central reserve, the impact tends to be at a fairly sharp 20 degree angle and at high speeds. Also, to offer some protection to the driver and passengers, a certain amount of give or deflection is desirable in the way that the safety barrier reacts to the vehicle, to soften the blow of the impact.
Examples of Armco Safety Barrier applications
Single row bolt down Armco
with pedestrian friendly ends For fixing down to preexisting concrete surfaces with anchor bolts
Single row cast in Armco – with fishtail ends
Normally for installations in unmade ground, but existing concrete or tarmac can be cored out to accept these type of posts.
Socket sleeves can be used making the posts easily replaceable if damaged, or if a section may need to be removed for access.
Double row Armco with extra beam above standard height
Shown as double row but triple row is also available, as you might see on a racetrack.
Double row Armco with extra beam below standard height
The lower beam can be set flush to the bottom of the post, giving good protection from forklift trucks
