Car Park Barriers – Armco Corrugated Beams
Car Park Barriers – Armco Beams Horizontal elements
Armco Car Park Barriers are the most common type of barrier and you have probably seem them along the centre of Roads and Motorways.

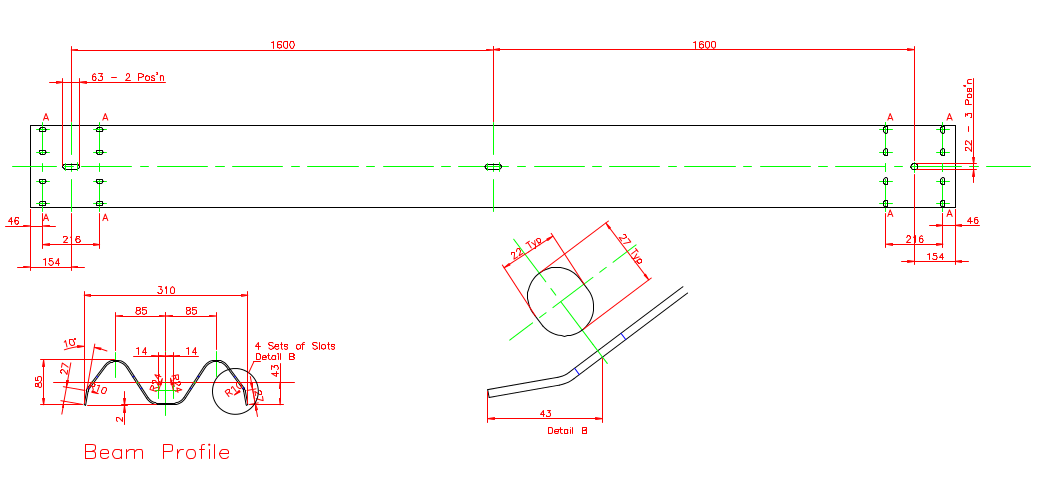

Versatile in use, they are 310mm wide with 85mm corrugations and are generally available as a 3.2 metre effective length ,achieved from a 3.5M overall beam or 1.6m from a 1.9m overall beam both have a 300mm overlap at each end and are jointed with 8 no bolts.
We can supply “make up” beams cut to exact size for your required run length or we can fabricate specials to suit any situation. Curved beams are available to accommodate the contours of your site, but a curve of 50m can be achieved with standard car park barriers..
Available in standard 3.2m & 1.6m effective lengths. We can also supply Armco Barrier make up beams which are cut to length to suit your site dimensions
There are slots in the beams in the centre of the valley to allow for fixing to posts with a single M16 bolt for each post. The slots allow for the posts to be set at 3.2m or 1.6m centre to centre as standard, although they are easily drilled on site to accommodate extra posts, or where posts need to be set at a different centre to over come a particular problem.
